Yellow Zinc DIN933 Stainless Steel Fasteners ANSI 4.8 Stainless Sheet Metal Screws

  • 1
  • 2

Brand Name : TOBO

Model Number : Spring split Washers

Certification : SGS BV ROHS etc

Place of Origin : China

MOQ : 20Kg

Price : 1000-2200USD/ton

Payment Terms : D/A, T/T, Western Union, MoneyGram

Supply Ability : Max 150 tons/month

Delivery Time : According to the order

Packaging Details : Neutral packaging or customized packaging

Standard : GB DIN JIS ANSI

Material : Brass, Stainless Steel, Steel, Alloy steel/Carbon steel/Stainless st

Style : Split, Wedge, Internal Tooth, External Tooth, countersunk, Bonde

Application : Heavy Industry, Mining, Retail Industry, General Industry, Oil & Gas,

Surface : zinc ,black oxide ,nickel ,ruspert,HDG,Dacromet

Size : 2#-3inch

Package : Box Packing+carton+pallets

Product name : standard spring washer

Contact Now

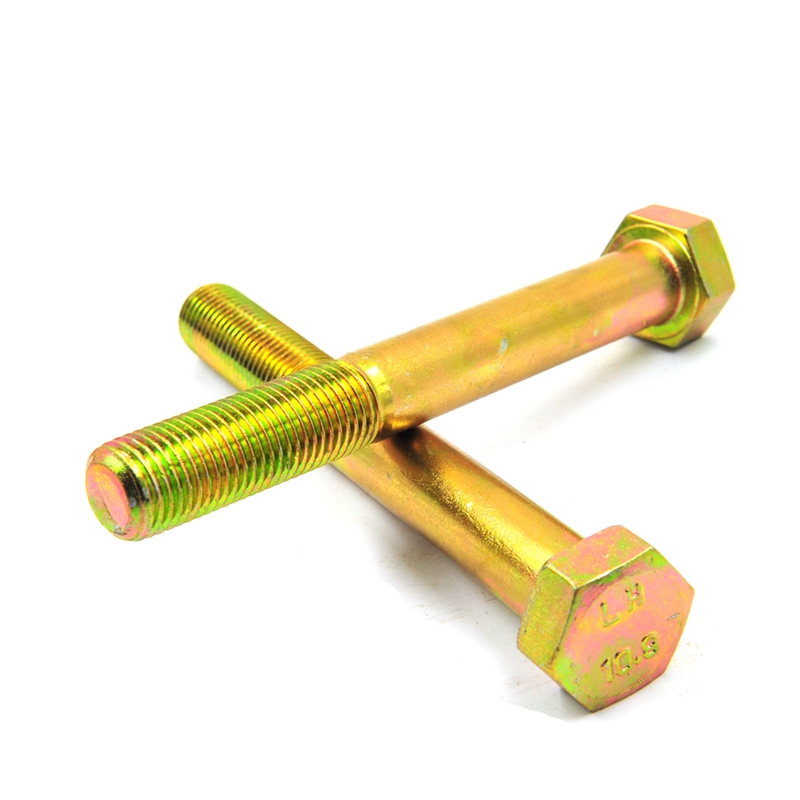

M6 Yellow Zinc DIN 933 Hex Head Full Thread Bolt Fastener

Product Detal

1. Certification: ISO, ROHS, SGS
2. Available Standard: DIN, ANSI, ASTM, JIS, BSW
3. Strength: Grade 4.8,Grade 8.8,Grade10.9,Grade12.9 A2-70, A4-70, A4-80
4. Finishing: Yellow, blue, white zinc plated, Galvanized,HDG,Chromate,Dacromet
5. Available material: Carbon steel, stainelss steel SS304, A2 ,Stainless steel SS314,A4.
6. Size: M2-M100, Length: 5-300mm, Moq: 500pcs, Port: Shenzhen, Shanghai
7. Available Packing: Plastic bags+Chipboard Cartons+Plywood pallet with Belt &Film.
Product Description
Size ID(mm) OD(mm) Thickness(mm) Unit weight,Kg/1000pcs
min max min max min max
SAE NO.4 3.05 3.37 7.8 8.12 0.64 1.01 0.29
SAE NO.6 3.84 4.17 9.40 9.91 0.91 1.65 0.66
SAE NO.8 4.65 4.98 11.00 11.51 0.91 1.65 0.87
SAE NO.10 5.44 5.77 12.57 13.08 0.91 1.65 1.12
SAE NO.12 6.22 6.73 14.15 14.66 1.30 2.03 1.81
SAE 1/4 7.01 7.52 15.75 16.26 1.30 2.03 2.21
SAE 5/16 8.61 9.12 17.30 17.86 1.30 2.03 2.51
SAE 3/8 10.19 10.69 20.45 21.00 1.30 2.03 3.46
SAE 7/16 11.79 12.29 23.24 23.80 1.30 2.03 4.48
SAE 1/2 13.36 13.87 26.80 27.74 1.88 3.07 9.02
SAE 9/16 14.96 15.47 29.18 30.12 1.88 3.07 10.43
SAE 5/8 16.48 17.42 33.15 34.09 1.88 3.07 13.59
SAE 3/4 20.45 21.39 37.13 38.07 2.74 4.06 20.11
SAE 7/8 23.65 24.58 44.27 45.21 2.74 4.06 31.12
SAE 1 26.80 27.74 50.62 51.56 2.74 4.06 40.67
SAE 1-1/8 31.57 32.51 56.97 57.91 2.74 4.06 49.41
SAE 1-1/4 34.75 35.69 63.32 64.26 3.45 4.88 75.03
SAE 1-3/8 37.92 38.86 69.67 70.61 3.45 4.88 91.1
SAE 1-1/2 40.10 42.04 76.02 76.96 3.45 4.88 110.8
USS 3/16 NO.4 6.22 6.73 14.15 14.66 0.91 1.65 1.81
USS 1/4 7.80 8.41 18.47 19.02 1.30 2.03 3.04
USS 5/16 9.40 9.91 22.05 22.99 1.63 2.64 5.8
USS 3/8 11.00 11.51 25.22 26.16 1.63 2.64 7.42
USS 7/16 12.57 13.08 31.57 32.51 1.63 2.64 11.83
USS 1/2 14.15 14.66 34.75 35.69 2.18 3.35 18.3
USS 9/16 15.75 16.26 37.13 38.07 2.18 3.35 20.48
USS 5/8 17.30 18.24 44.37 45.21 2.74 4.00 36.57
USS 3/4 20.45 21.39 50.62 51.56 3.10 4.50 52.49
USS 7/8 23.65 24.58 56.97 57.91 3.45 4.88 71.75
USS 1 26.80 27.74 63.32 64.26 3.45 4.88 87.59
USS 1.1/8 31.57 32.51 69.67 70.61 3.45 4.88 102.44
USS 1.1/4 34.75 35.69 76.02 76.96 3.45 4.88 121.08
USS 1.3/8 37.85 39.24 82.30 83.69 3.89 5.41 159.73
USS 1.1/2 41.02 42.42 88.65 90.04 3.89 5.41 184.19
USS 1.5/8 44.20 45.59 95.00 96.39 3.89 5.41 210.36
USS 1.3/4 47.37 48.77 101.35 102.74 3.89 5.41 238.28
USS 1.7/8 50.55 51.49 107.70 109.09 3.89 5.41 267.92
USS 2 53.72 55.12 114.05 115.44 3.89 5.41 299.32
USS 2-1∕4 60.08 61.46 120.4 121.79 4.91 6.29 387.49
USS 2-1∕2 66.43 67.81 126.75 128.14 5.33 7.11 460.45
USS 2-3∕4 72.77 74.67 133.1 135 5.79 7.87 544.46
USS 3 79.12 81.02 139.45 142.35 6.32 8.3 631.12
Yellow Zinc DIN933 Stainless Steel Fasteners ANSI 4.8 Stainless Sheet Metal Screws

Yellow Zinc DIN933 Stainless Steel Fasteners ANSI 4.8 Stainless Sheet Metal Screws

Yellow Zinc DIN933 Stainless Steel Fasteners ANSI 4.8 Stainless Sheet Metal Screws

Package & Shipping

Yellow Zinc DIN933 Stainless Steel Fasteners ANSI 4.8 Stainless Sheet Metal Screws
Package details:
1) Sample order, 20/25kg per carton with our logo or neutral package;
2) For Large orders, we can custom packaging;
3) Normal Packing: 1000/500/250pcs per small box. then into cartons and pallet;
4) According to customers' requirements.
FAQ
1.How do you let me trust you?

We are a Golden supplier in Alibaba who do business for more than 5 years. You can make an order by Alibaba to us directly.

2.How about your price?

High-quality products with a reasonable price suitable for your market.

3.How do you control your quality?

We request a QC inspection for each batch of goods. And we can provide you inspection report and mill certificate if you want..

4.Could you provide free samples?

For new customers, We can provide free samples for standard fasteners. But the clients will pay the express charges. For regular customers, We will send you free samples and pay express charges by ourselves.

5.How about your delivery time?

Generally speaking, All the goods have stock with little quantity, we can delivery them with one week. If the quantity is 1-2container, we can give you with 30-45days.

6.What is your packing?

Our packing is 20-25kg for one carton,36 or 48pcs cartons for one pallet. One pallet is about 900-960kg, We also can make the customer's logo on the cartons. Or we customized cartons according to customers' requirement, If you need small box packing, we can do according to your requirement.

7.What is your payment term?

We can accept T/T,LC for general order. For new customer, we request 20%-50% T/T in advance, and balance payment should against B/L copy. For regular customer, we can provide delay payment after B/L date about 30-90 days.
